Axil Consulting Engineers is an Authorized Reseller for ActCAD in India, Working closely with ActCAD, we provide the best solutions for your Design/Drafting.


About ActCAD Software

Equipped with 30 years of experience in CAD, the Founders of ActCAD gathered their mutual initiative and first ventured into developing one of its earliest maiden CAD Software - Power DraftCAD in the 1990s. It was a DXF based light weight CAD software supported on Windows OS. Encouraged with its success, Jytra Technology Solutions Pvt. Ltd (India) under the aegis of Jytra Group of Companies was established in 2006 with a focus to develop custom CAD Software. This followed with becoming a Commercial Member of IntelliCAD Technology Consortium, USA. ActCAD, based on IntelliCAD Technology launched a fully packed CAD Software that was high on features and low on price for the Global Market. The driving force behind this was, “Not all Good Products Need to be Un-necessarily Expensive”.

Within a short span ActCAD Products today have reached 80 Countries. The patrons of the software range from Individual Users to Corporate Giants who have found ActCAD as a suitable alternative compared to highly priced industry leaders. On the basis of month-on-month, ActCAD is increasing its footprint globally. This success is attributed to the stringent quality control of the Software and humble but strong Technical Support even to the Trial Users.

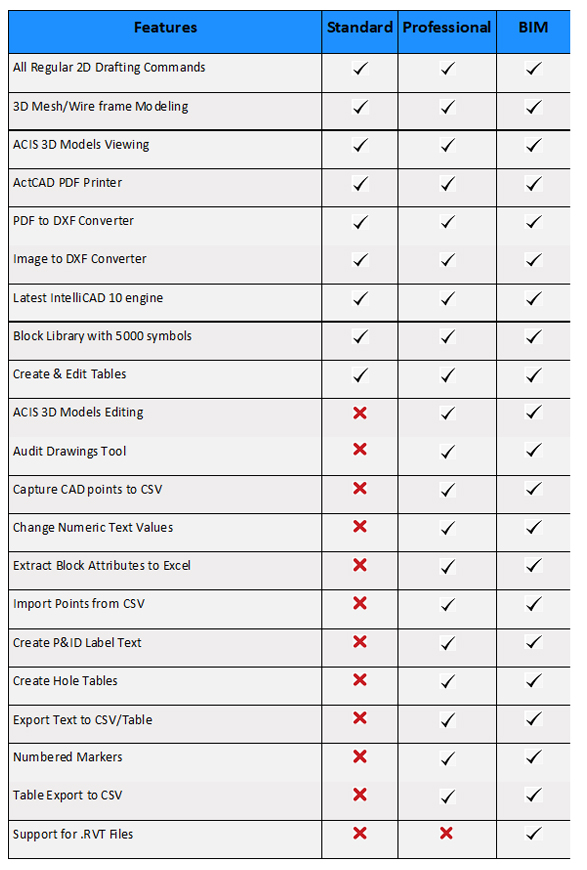

ActCAD is a native DWG & DXF Software under which it offers three specific types of CAD Software namely – ActCAD Standard for 2D Drafting Power Users, ActCAD Professional for 2D Drafting and 3D Modeling and ActCAD BIM (Building Information Modeling) which has all the features of ActCAD Professional along with BIM features. It is one Software for many applications covering the primary domains of – Architecture, Engineering, Construction (AEC) including Structural, Electrical, and Mechanical. Besides, ActCAD also offers other solutions like ActCAD Nesting, ActCAD Dials & Scales and ActCAD CNC Post Processor.

ActCAD uses the latest IntelliCAD 10.0a Engine, Open Design Alliance, dwg/dxf Libraries, ACIS 3D Modeling Kernel, and many other Technologies which ensures file support right from the early R2.5 to the latest Version of dwg/dxf. It also supports other file formats like .dgn, .step/.stp, .iges/.igs, .stl, .obj, 2D PDF, 3D PDF, .svg, .dae, etc. The interface and commands are designed in a manner that are familiar and easy for migration from any CAD Software.






Why Choose ActCAD?

  • ActCAD offers Permanent License

  • There is no recurring cost for annual subscription fee

  • Very Economical Lifetime Price
  • Artisan 3D Renderer – Create Photorealistic Presentations/Drawings
  • Convert PDF to DWG/DXF Files from within the Software
  • Convert Image to DWG/DXF Files – Raster to Vector
  • ActCAD Convertor: Batch Auditing & File Conversions
  • Access Tutorial Videos from within the software
  • Simple Self-Help Module to address most of the common queries
  • Block Library of over 5000 Blocks (you can add your blocks too)
  • Free Email Technical Support
  • Many add tools, features and commands

ECONOMICAL & PERPETUAL

ActCAD licenses are perpetual and available at very low global prices. Upgrade to future version is optional and there is no time limit.


MANY ADD-ON FEATURES

Apart from regular 2D & 3D commands, ActCAD comes with many add-on tools like PDF to DXF Converter, LH Sections, Block Library and many more.


ARITISAN RENDERER

Artisan 3D Professional Renderer is in-built into ActCAD to generate photo-realistic images. Add custom backgrounds, lights, materials, etc.


SELF LICENSE TRANSFER

ActCAD License can be shifted between computers unlimited times over the internet. There is no limit on the number of transfers. One-click Key release.


API CUSTOMIZATION

API kit is available free with all ActCAD products. We support LISP, DCL, SDS, Object IRX, .Net programming languages. Samples & Help available.


FILE CONVERTERS

ActCAD comes with PDF to DXF Converter, Image to DXF Converter, DWG/DXF/DGN Converter, etc. A high-re


BLOCK LIBRARY

ActCAD Block Library has over 5000 symbols in Civil, Mechanical, Electrical, Architectural, Structural domains, etc. Add your own symbols also to Library


FREE TECHNICAL SUPPORT

ActCAD offers free email Technical Support on all its products. Self-help module, Video tutorials, user manuals, etc. available at no extra cost.


EASY LEARNING CURVE

ActCAD is very easy to learn and use. It has a well-designed & attractive user interface with tooltips and detailed help. Both Ribbon & Classic UI available.
