SINETZ

AXIL Consulting Engineers is an Authorized Sales Partner for SIGMA and its verticals in INDIA, Working closely with SIGMA; we provide the best solutions to address the Process challenges through our SINETZ Software.

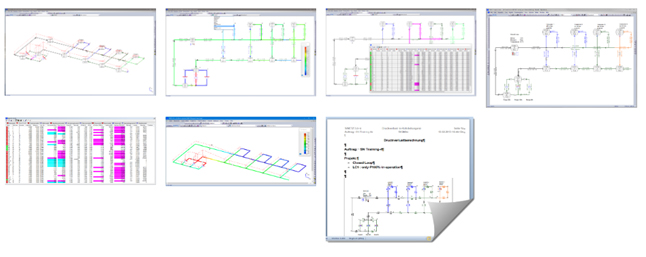

SINETZ-Calculations of Pressure loss and Temperature drop in Piping Systems

SINETZ features

Databases may be edited by means of dialog windows or by an ASCII-Editor.

Load cases

Simulation of different operation states in the system Each operation state requires the definition of one load case. One medium per load case is defined.

Calculation of pressure and heat loss in district heating networks

Results and documentation

Data protection

Results output

Results at pipe segments

• The sum of zeta values in the segment
• Flow rate and direction
• Velocity
• Friction coefficient Lambda
• Reynolds' number
• Changes in pressure
• Changes in temperature
• Wall temperature of the insulation (not for SINETZ fluid)

Results at nodes

• Pressure
• Temperature
• Velocity
• Total inflow and outflow
• Density and viscosity of the medium
• Enthalpy
• NPSH available

The results also can be displayed at every segment of the node (cross sections). This can be used for the interpretation of results at nodes with velocity changes where velocity changes have an effect on the static pressure before and after the node
